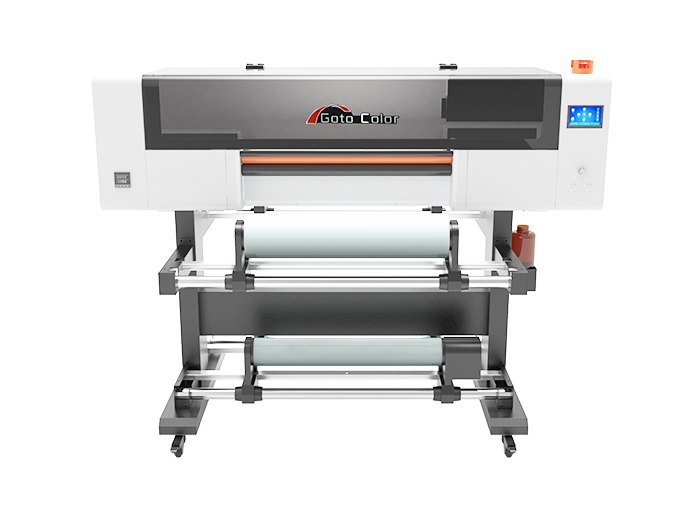

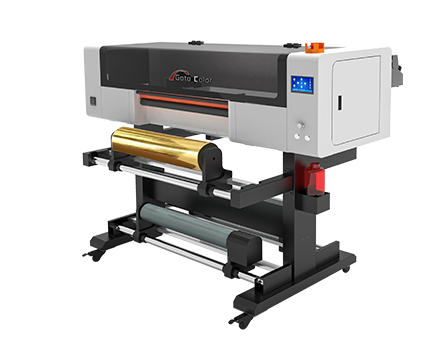

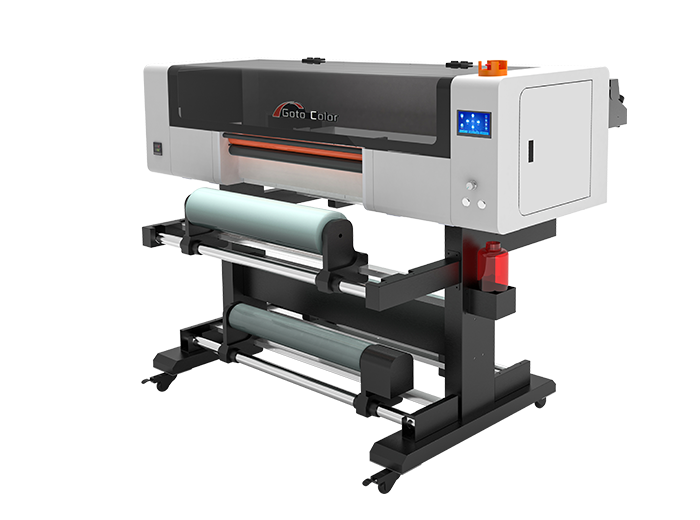

GT-U600 UV DTF Printer

UV DTF Printer is a printing machine that can print patterns on PET Film. The printer can operate multiple devices by one person, and there is no need for a minimum order quantity to achieve a minimum order. The speed is fast, the cost is low, the color is bright and vivid, which completely subverts the traditional tedious process of various printing. Just need to stick it on something hardsurface, like cups, helmet, giftbox, mugs, winebottle, phone case etc, you will get suprised effect.

Print Head

3 pcs Epson I1600/I3200 U1 heads

Color

CMYK+W+V

Print Width

600mm

Print Speed

1.8-4.5 sqm/h

Print Software

Photo print

Working Voltage

AC-220V/110V 50Hz/60Hz

Quote Now

Send E-mail

Share With:

Description

Roll to Roll UV DTF Printer

UV DTF (Direct to Film) printing is a specific application of UV printing technology combined with the Direct to Film transfer method. This method involves printing designs onto a special film substrate using UV-curable ink, and then transferring the design onto various surfaces(better hard surfaces), such as metal, acrylic, pvc, wood, leather, ceramics, glass etc.

Quote Now

Specifications

Technical Parameters:

Model	GT-U600 UV DTF Printer
Printhead Type	I1600U1/I3200U1
Ink color	C/M/Y/K/W/V
Ink tank volume	500ml tank for each color
Ink supply system	Negative pressure continuous ink supply
Print width	600mm
Print material	AB film
Rip software	Photoprint
Working voltage	AC-220V/110V 50Hz/60Hz
Power	350w
Working Environment	Temperature20℃-30℃Humidity 40%-60%Rh
Machine Size	1380mm 8601000mm（LxWxH）
Package Size	1460mm x 890mm x 800mm（LxWxH）

Product Details video

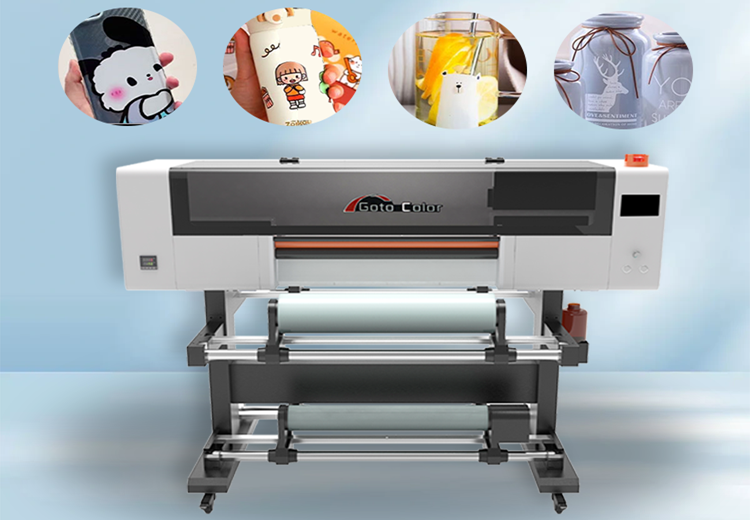

UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink. It can be used on almost all materials like Metal/Acrylic/Glass/Wood/Plastic/Ceramics/Leather/KT Board/Canvas/ABS/PVC/TPU, etc.
