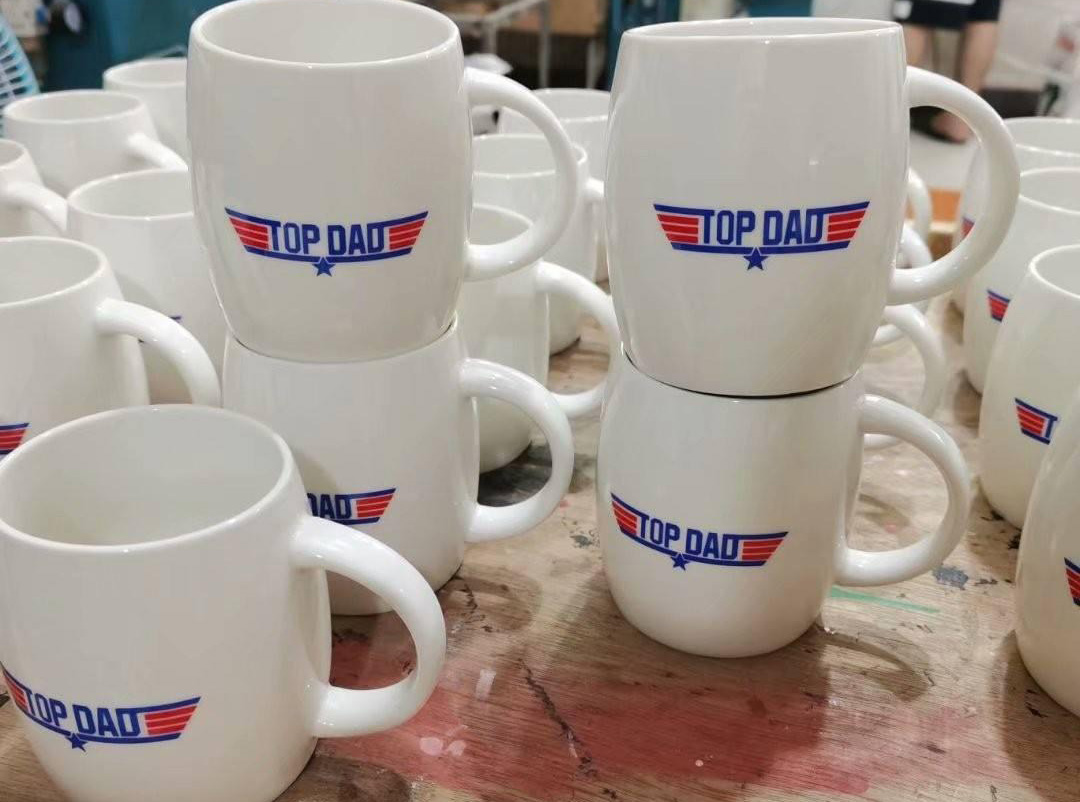

UV flatbed printers adopt the piezoelectric inkjet printing principle, which is different from screen printing, thermal transfer printing, pad printing and other principles. It can control the ink through the internal voltage of the nozzle and spray it on the surface of the printed object, indirect contact with the material, air-to-air inkjet sprays ink on the surface of the material, thus broadening the range of material printing, such as daily mobile phone cases, glass, nameplates, ceramic tiles, acrylic, metal, leather, textile and other materials.

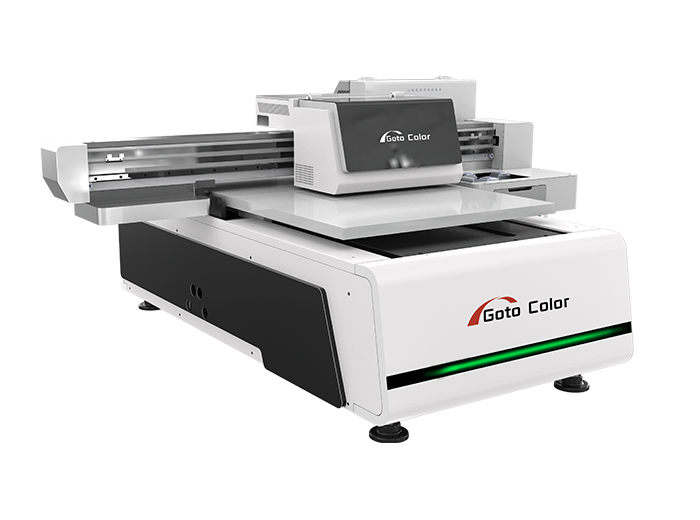

| Printer Type | A1 UV Flatbed Automatic+Cylinder Printer |
||||
| Print Head(Epson) | 3*DX10 | 3* F1080 | 3* I1600U1 | 3* I3200 | |
| Print Dimension | 600mm*900mm/A1 |
||||
| Resolution | 1440*1440DPI /2400*2400DPI
(6Pass /8Pass) |
||||
| Speed | 6m2/h (8Pass), 8m2/h (6Pass) |
||||
| UV Cure | Three UV LED Lamps |
||||
|
Ink |
Type | UV Ink |
|||
| Color | CMYK Lm LC+W+V |
CMYK+W+V | |||
| Tank | 500ml |
||||
| Ink Supply System | CISS Built Inside |
||||
| Consumption | 10-13ml/m2 |
||||
|
Media |

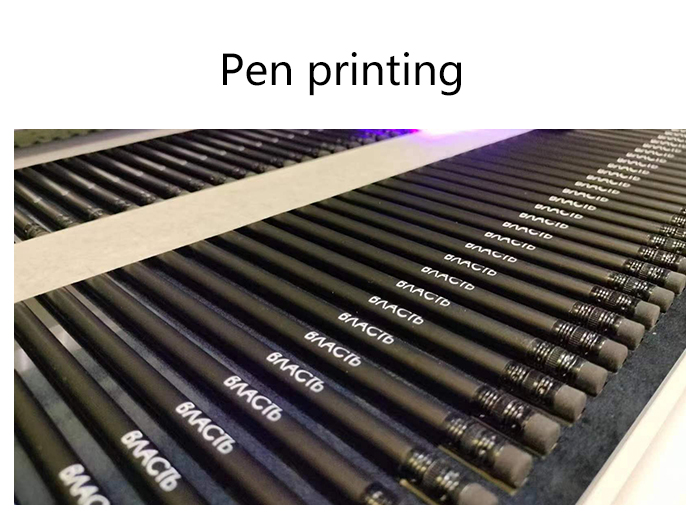

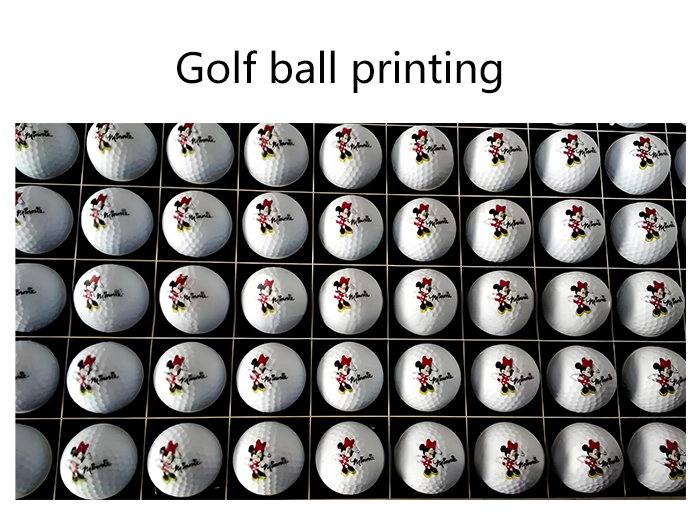

Type | Metal, Plastic, Glass, Leather, Wood, Acrylic, Canvas, PVC, Ball, Pen, Cylinder |
|||
| Weight | ≤15KG |
||||
| Maximum thickness | 15cm |
||||
|
Software |
RIP | Photoprint12 |
|||
| Format | TIFF, JPG, EPS, PDF |
||||
| System | WindowsXP/ Windows7/ Windows8/Windows10 |
||||
| Interface | USB 2.0 |
||||
| Operation Environment | Temperature | 15-30℃ |
|||
| Humidity | 35-65%RH |
||||
|
Power |
Requirement | AC220V/110V 50/60Hz |
|||
| Consumption | 1000w |
||||
| Dimension | 160*134*65cm |
||||
| Packing Size Type | 167*144*88cm |
||||
| Weight | 240KG |
||||

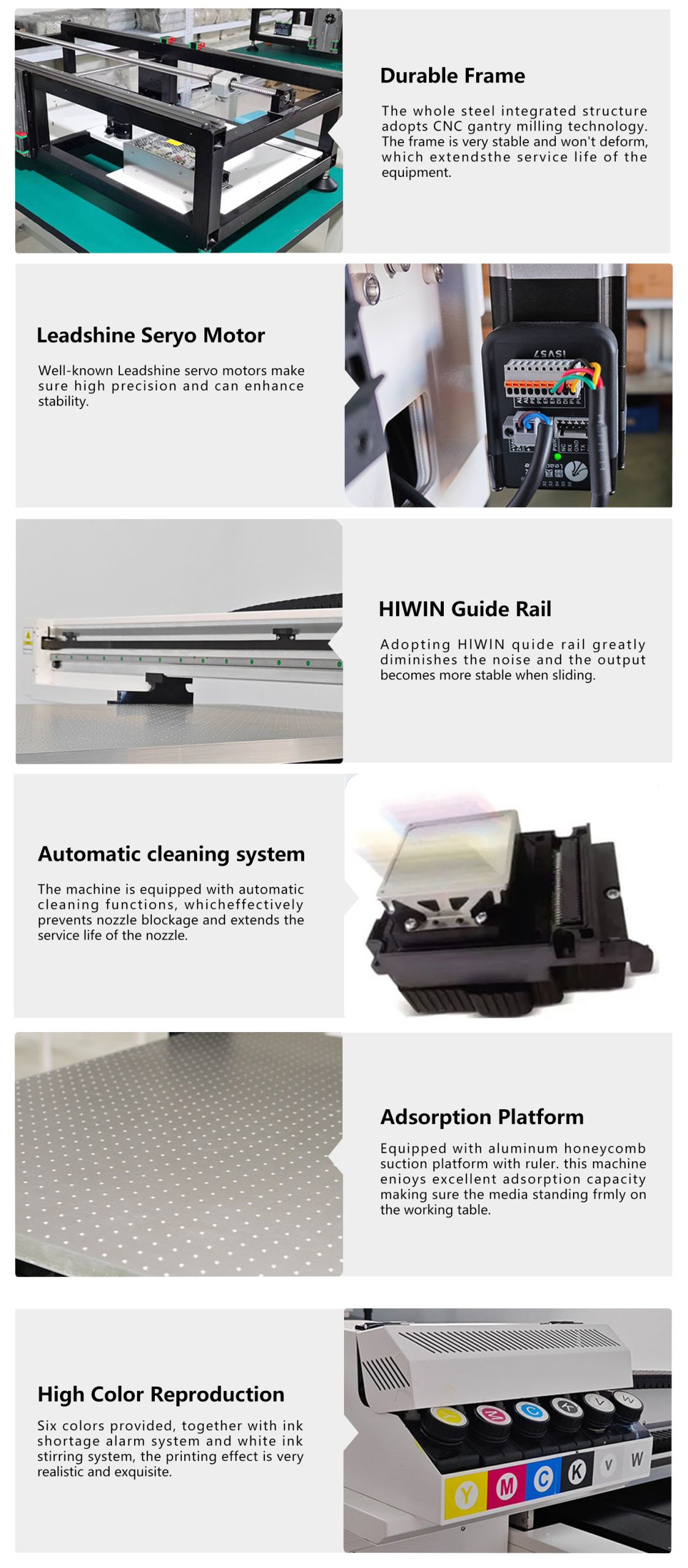

Durable Frame
The whole steel integrated structure adopts CNC gantry milling technology. The frame is very stable and won’t deform, which extends the service life of the equipment.
Leadshine Servo Motor
Well-known Leadshine servo motors make sure high precision and can enhance stability.
Automatic cleaning system
The machine is equipped with automatic cleaning functions, which effectively prevents nozzle blockage and extends the service life of the nozzle.
HIWIN Guide Rail
Adopting HIWIN guide rail greatly diminishes the noise and the output becomes more stable when sliding.
Adsorption Platform
Equipped with aluminum honeycomb suction platform with ruler. this machine enjoys excellent adsorption capacity making sure the media standing firmly on the working table.
High Color Reproduction
Six colors provided, together with ink shortage alarm system and white ink stirring system, the printing effect is very realistic and exquisite.
