Product
UV DTF Printer
Endless Print Possibility With UV DTF printer

30-60cm wide crystal mark printer, environmentally friendly, no waste, small footprint, suitable for personalized customization, suitable for various smooth object surfaces, can be applied on the go, scratch-resistant and wear-resistant.

UV DTF Printer
See Your UV DTF Printers Option
UV DTF Printing: the best way to produce custom apparel.
UV DTF Application
What Can You Print With UV DTF Printer?
UV DTF printer works for almost all kinds of fabric!
Crystal label
Crystal label
Print out what you like and stick it on each item as you like to make them look beautiful.
Crystal label
Crystal label
Print out what you like and stick it on each item as you like to make them look beautiful.
Crystal label
Crystal label
Print out what you like and stick it on each item as you like to make them look beautiful.
Crystal label
Crystal label
Print out what you like and stick it on each item as you like to make them look beautiful.
Crystal label
Crystal label
Print out what you like and stick it on each item as you like to make them look beautiful.
The Process of UV DTF
How UV DTF Printer Works?
UV DTF printing is a simple process to print on a film and directly transfer it onto fabric. It works on cotton and poly blends, almost on all kinds of fabric. Just see how it works below
Step 1 – Print on Film
To begin with, you print the whole image on the PET film, with white as the bottom. Then, you can set the color you want and print the image on the white layer.
Step 2 – Adding The Desired Colors
The printer has several print head that performs different printing action. The first head applies the colors which is a blend of CMYK color on the film.
Step 3 – Adding The Unique Powder
After printing, the printer sends the film to the powder shaker unit, where a unique powder adhesive coating is added to the film evenly while it is still wet, into the loop.
Step 4 – High-Temperature Heat Pressing
It is simply taking the transfer film out of the powder shaker machine and placing it on the fabric that is already on the heat press.
Free Accessory
Free Accessory List
Gotocolor specializes production of various printer equipment,such as uv flatbed printer, DTF printer, UV DTF printer and so on

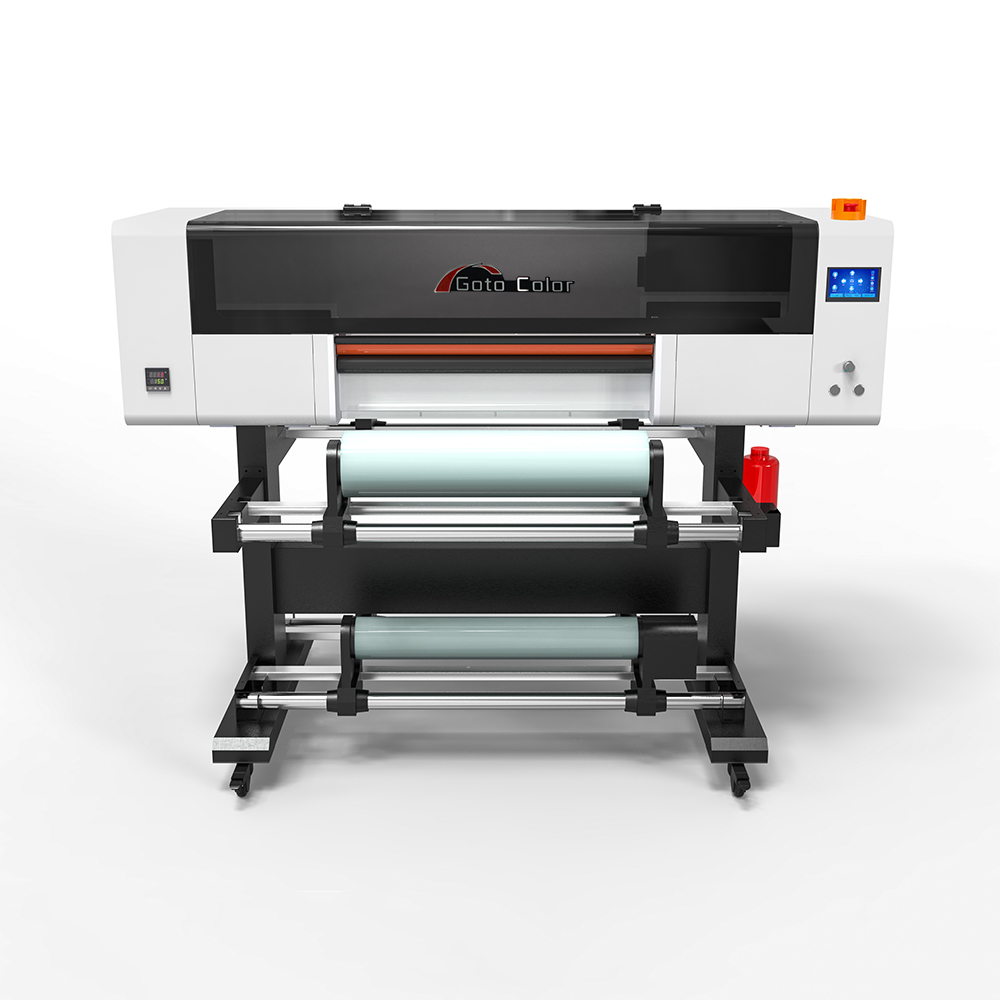

Model GT-UV DTF Printer
Printhead Type DX10(TX800)/3pcs
Head Cleaning Automatic cleaning
Ink type Dedicated UV ink
Ink color C/M/Y/K/Lm/Lc/W/V
Ink tank volume 500ml tank for each color
Ink supply system Negative pressure continuous ink supply
Print width 300mm
Print material PET film
Weight of Material ≤ 40kg
Heating system Fore – Middle-back 3 type heater
Print port USB
Rip software Photo print
Operating System Win10/Win7
Electrical parameters AC-220V.50Hz/60Hz
Power Standby 32w, Max2300W
Working Environment Temperature 18℃-25℃Humidity 35%-65%Rh
Machine Size 1060mm x860mm x 690mm (LxWxH)
Package Size 1180mm x 1050mm x 850mm (LxWxH)
ADVANTAGE
Why Choose Gotocolor printer?
Gotocolor specializes production of various printer equipment,such as uv flatbed printer, DTF printer, UV DTF printer and so on
Quality Products
Our products have obtain ec certification and strict inspection
Service
A professional team provides you with 24-hour online service
Logistics
Fast delivery with shortlead time
ODM/OEM
ODM/OEM service. Strong production capacity and competitive pnce
SERVICE
Provide Thoughtful Solutions To Your Problems
We have a certain scale capacity to ensure your order delivery cycle.
Before Sale Service
Answering consultation from users, according to user's demands, help user choosesuitable type.
During Sale Service
Transport the equipment to user's site safely and timely.
Our technicians guide the operators and maintenance personnel according to theoperating procedures
After Sale Service
Give a clear answer for user's complaints within 24hours.
Return visit at regular intervals.
Establishing user's record.
Providing latest industrial information.
