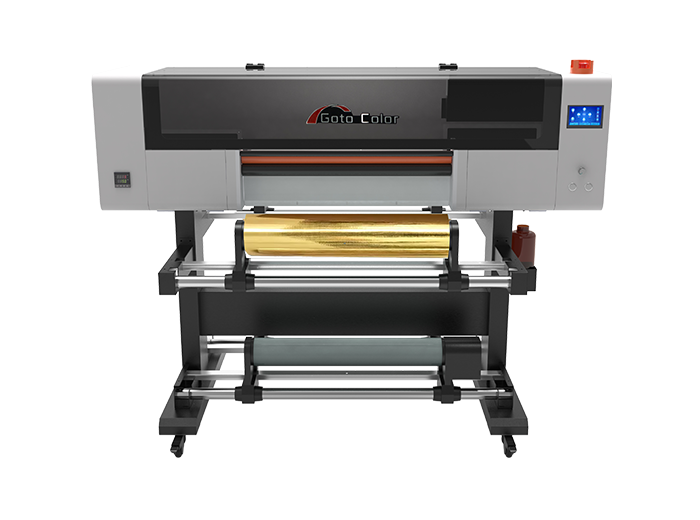

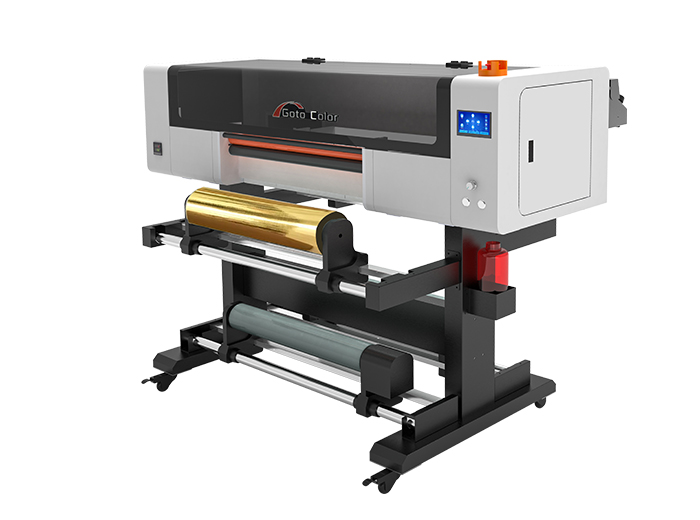

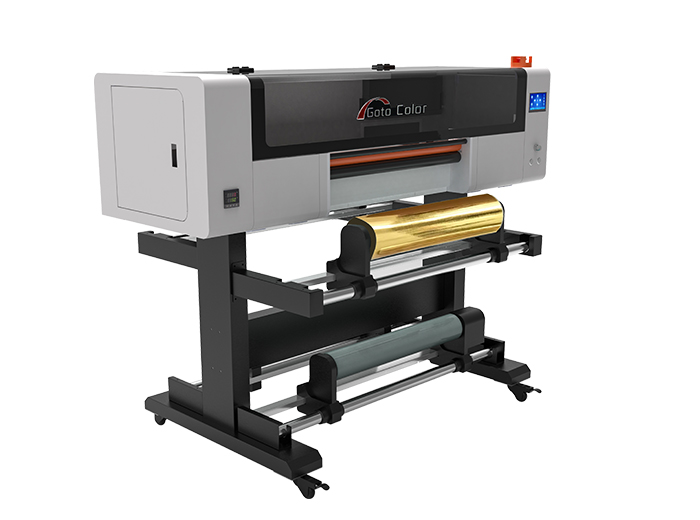

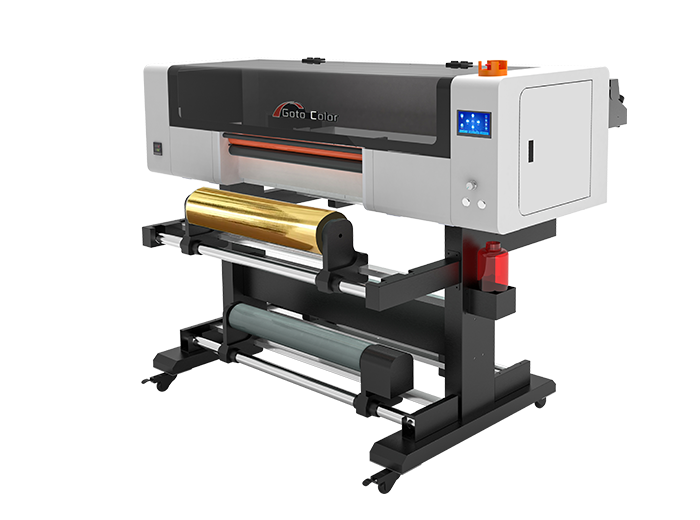

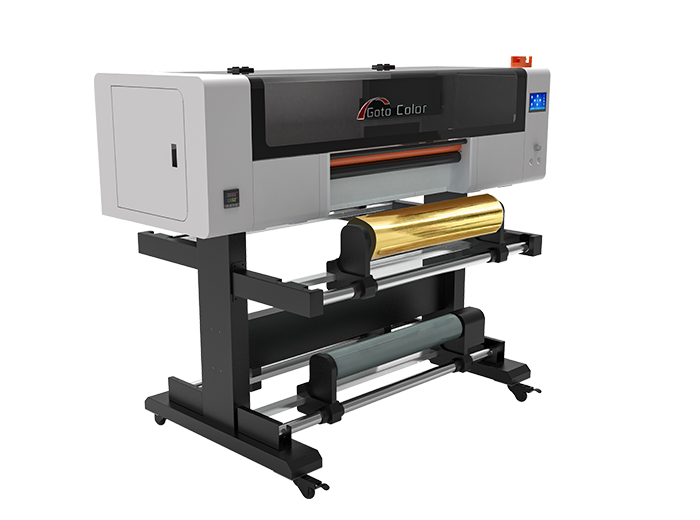

GT- Gold Foil UV DTF Printer

Goto Color develops its latest technology, Gold Foil UV DTF printing, which delivers exceptional solutions for partial gold and silver printing as well as full gold and silver printing. Equipped with 4 Epson heads, this technology prints the glue directly onto materials and the sticker apply to such as paper products, packaging boxes, gift boxes, glass, metal, wood, and more.
Print Head
4 pcs Epson TX800 heads
Color
CMYK+W+V+Glue
Print Width
600mm
Print Speed
1.8-4.5 sqm/h
Print Software
photo print
Working Voltage
AC-220V/110V 50Hz/60Hz
Description
Gold Foil UV DTF printer

Gold Foil UV DTF (Direct to Film) printing is a specific application of UV printing technology combined with the Direct to Film transfer method. This method involves printing designs onto a gold/silver film substrate by using UV-curable ink, and then transferring the design onto various surfaces(better hard surfaces), such as metal, acrylic, pvc, wood, leather, ceramics, glass etc.

Features
Gold Foil UV DTF printer, Your noble option!
4 pcs Epson TX800 printheads;
High printing speed 1.8-4.5 sqm/h;
Automatic foil covering and laminating system;
Automatic film feeding and collecting system;
Automatic cleaning system.
Application
What can you print with Gold Foil UV DTF printer?
Gold Foil UV DTF printer can print crystal rub-on sticker, crystal label sticker, PET film sticker with gold/silver effects for individual and industry use.
Specifications
Technical Parameters:
Model GT-Gold Foil UV DTF Printer
Printhead Type EPS TX800
Ink color C/M/Y/K/W/V/Glue
Ink tank volume 500ml tank for each color
Ink supply system Negative pressure continuous ink supply
Print width 600mm
Print material AB film+Gold/Silver film
Rip software Photoprint
Working voltage AC-220V/110V 50Hz/60Hz
Power 350w
Working Environment Temperature20℃-30℃Humidity 40%-60%Rh
Machine Size 1380mm *860*1000mm(LxWxH)
Package Size 1460mm x 890mm x 800mm(LxWxH)
Gold Foil UV DTF Printer Process
What's the process of Gold Foil UV DTF printer?
The process of gold foil UV DTF printer combines UV printing technology with gold foil transfer technology. First, design the artwork, then UV print the pattern, and finally complete the lamination and gold foil transfer. After getting the printed sticker, you can transfer the pattern to the target substrate.
