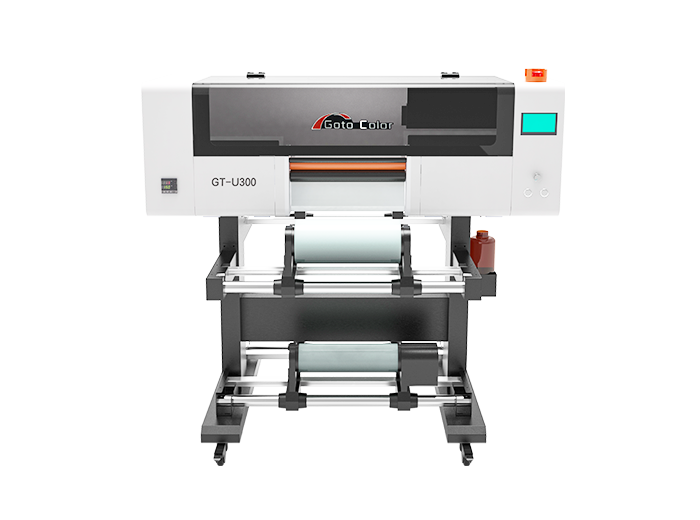

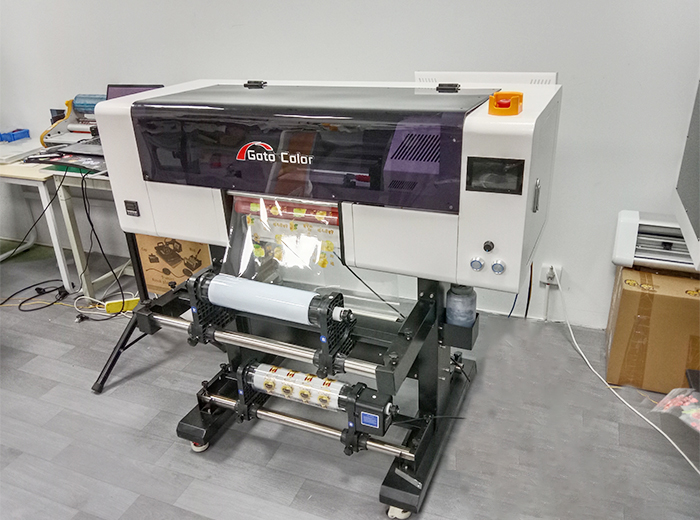

GT-U300 UV DTF printer

UV DTF (Direct to Film) printing is a specific application of UV printing technology combined with the Direct to Film transfer method. This method involves printing designs onto a special film substrate using UV-curable ink, and then transferring the design onto various surfaces(better hard surfaces), such as iron,arcrylic,pvc, wood,leather, ceramics, glass etc.
UV DTF printers utilize UV-curable ink that cures instantly when exposed to ultraviolet (UV) light. The ink is applied directly onto the film substrate, creating the desired design or image. Once the design is printed on the film, it can be transferred onto the desired surface using a heat press or similar transfer method. During the transfer process, the ink adheres to the surface, resulting in a durable and vibrant print.
UV DTF printing offers several advantages, including:
1. Versatility: It can be used to print on a wide range of substrates, including wood, ceramics, glass, metal, plastics etc.
2. Durability: UV-curable inks are highly durable and resistant to fading, scratching, and abrasion, ensuring long-lasting prints.
3. Vibrant Colors: UV inks provide vibrant and high-quality color reproduction, making them suitable for producing detailed and eye-catching prints.
4. Quick Turnaround: UV DTF printing allows for fast production speeds, making it ideal for on-demand printing and short print runs.
5. Environmentally Friendly: UV-curable inks typically contain fewer volatile organic compounds (VOCs) compared to solvent-based inks, making them more environmentally friendly.
Overall, UV DTF printing is a versatile and efficient printing technology suitable for various applications in industries such as textiles, signage, packaging, and manufacturing.
Model
GT-300UV DTF
Item
UV DTF printer/Crystal labelling printer/roll to roll UV printer
Printhead
I1600U1/I3200U1
Print head number
2pc/3 pc
Print size
300mm/A3 (AB film ,width300mm, length 100meter)
Print speed
4/6/8 pass
Ink colors
CMYK+W+V
Rip software
Photoprint
Power
1.2kw
Power voltage
AC 220v or as request
Cooling
Air cooling
Working environment T&H
20-30℃ 40-60%RH
Printer size
128*90*123cm
Package Size
1380*101*680cm
Packing weight
Net Weight: 70kg / Gross weight; 90kg
Description

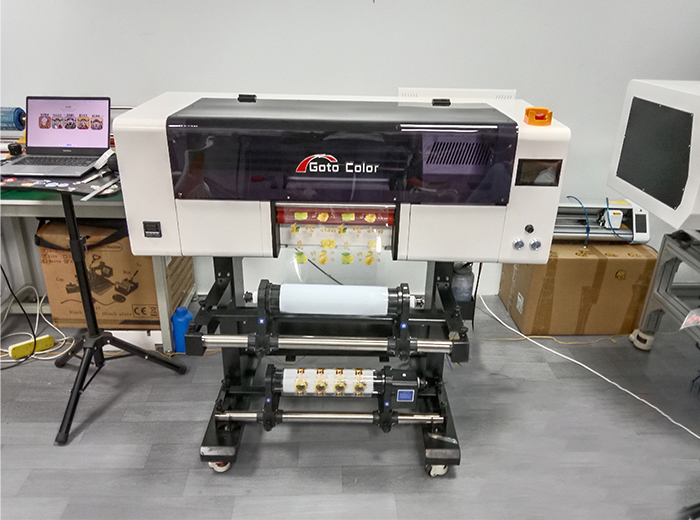

A3 roll to roll UV DTF Printer
Gotocolor Roll To Roll inkjet label printer/ UV sticker printer UV color Label Printer which is a multifunctional LED UV printer. It is a perfect machine to customize label/sticker/logo/sign in a very convinent way.
With Epson TX800/I1600U1 print heads,high resolution and designed printing effect will come true. The final prodcut can use directly onto personalized goods, industrial products, promotional items etc.
Gotocolor roll to roll UV printer has 6-8 color and 1440*1440 dpi printing resolution. can print almost all kind labels which sold in the market.
Professional technical team and perfect after-sales service have enabled us to win unanimous praise from customers around the world.
features
UV DTF Printer, Your Ideal Option
There will be no double flashes and various sensor errors . The failure rate will be reduced;

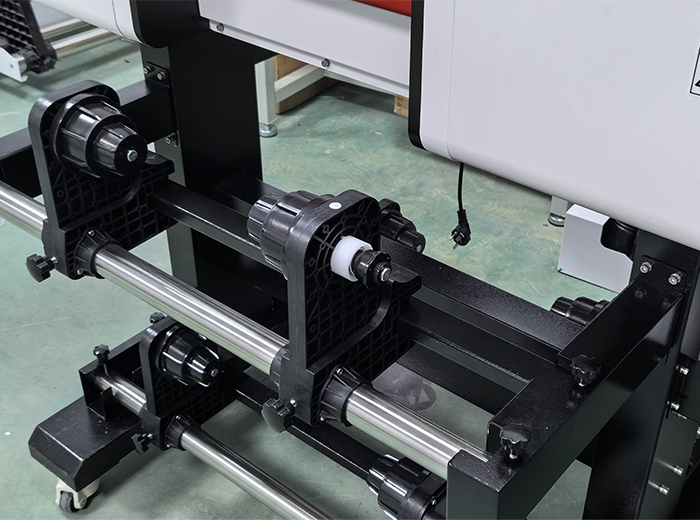

If the length of the roll of film or the piece of paper you are about to print is 100 meters, you can print 100 meters without any interruption;
Switch between single-sheet paper printing and rolling film printing at will;
The paper will not slip during printing; there is no restriction on whether the material is transparent, glossy or matte
Standard white ink mixing system (or white ink mixer), automatic timing, intermittent mixing;
Equipped with varnish function.
Support color setting: CMYK WW, CMYK VW or CMYKLMLC

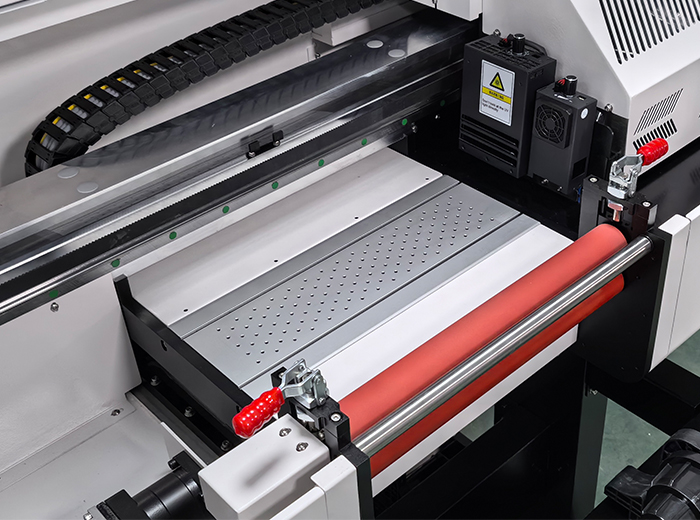

Equipped with vacuum suction platform
Application
What Can You Print With DTF Printer?
DTF printer works for almost all kinds of fabric!
UV DTF printer application
UV DTF printer application
UV DTF - New Solution For Instant Transfer On Hard Substrates. UV DTF printing is a new technology called cold transfer printing. The biggest advantage of this technology is that after printing, it can be transferred directly to the substrate without additional processing. Fully automatic UV DTF printer, save your time and money, to realise wonderful label/sticker /customization solutions!
Specifications
Specifications
Model GT-U300  UV DTF Printer
Printhead Type TX800/I1600U1

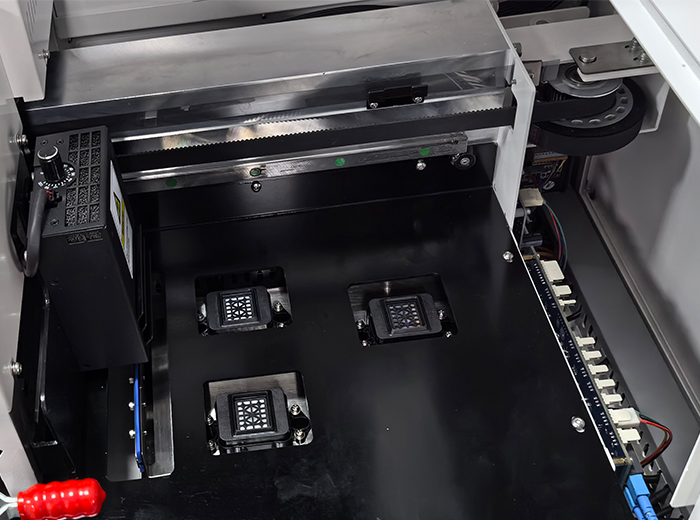

Head Cleaning Automatic cleaning
Ink type Dedicated UV ink
Ink color C/M/Y/K/W/V
Ink tank volume 500ml tank for each color
Ink supply system Negative pressure continuous ink supply
Print width 300mm
Print material AB film
Weight of Material ≤ 40kg
Heating system Fore – Middle-back 3 type heater
Print port USB
Rip software Photoprint
Operating System windows
Electrical parameters AC-220V.50Hz/60Hz
Power 1200w
Working Environment Temperature20℃-30℃Humidity 40%-60%Rh
Machine Size 1280mm *900*1230mm(LxWxH)
Package Size 1380mm x 1010mm x 680mm(LxWxH)
The Process of PrintER
Product Details video
DTF printing is a simple process to print on a film and directly transfer it onto fabric. It works on cotton and poly blends, almost on all kinds of fabric. Just see how it works below
